Reloj con fase Lunar impreso en 3D
Hoy os traemos un reloj con fase lunar impreso en una impresora 3D y programado con Arduino. Este original proyecto ha sido realizado por G4lile0

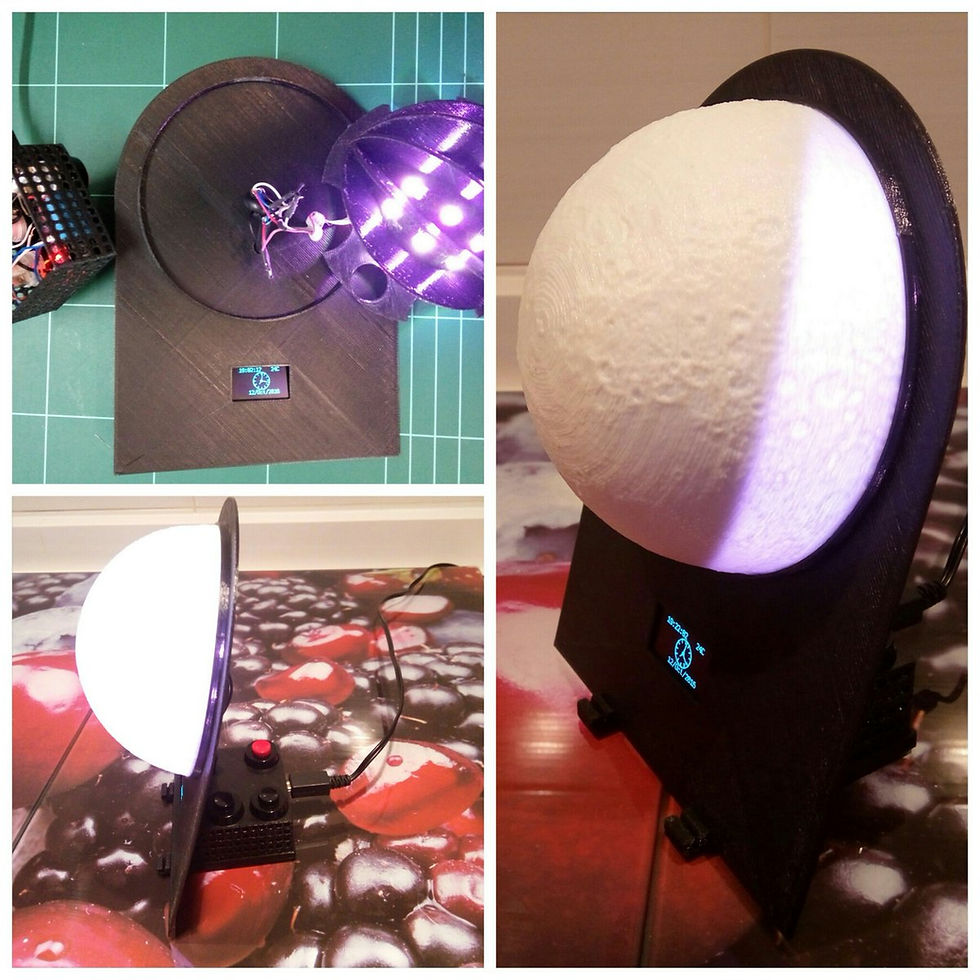

Reloj con fase Lunar impreso en 3D diseñado por G4lile0
Creado solo con herramientas libres (Ubuntu / Freecad / Arduino)
Open Source / Hardware
Electrónica económica (Arduino, LCD)
Tan solo 79 gramos de filamento
Precisa simulación de la fase lunar
Modelo detallado de la luna by Dexter_New_Materials (http://www.thingiverse.com/thing:1014620)
Reloj analógico y digital
Alarma con simulación de amanecer
Alarma
Fecha
Termómetro
Monitor de Humedad
Lampara
Modos Demo (Disco /Relax...)
Control de brillo
Inclinación regulable

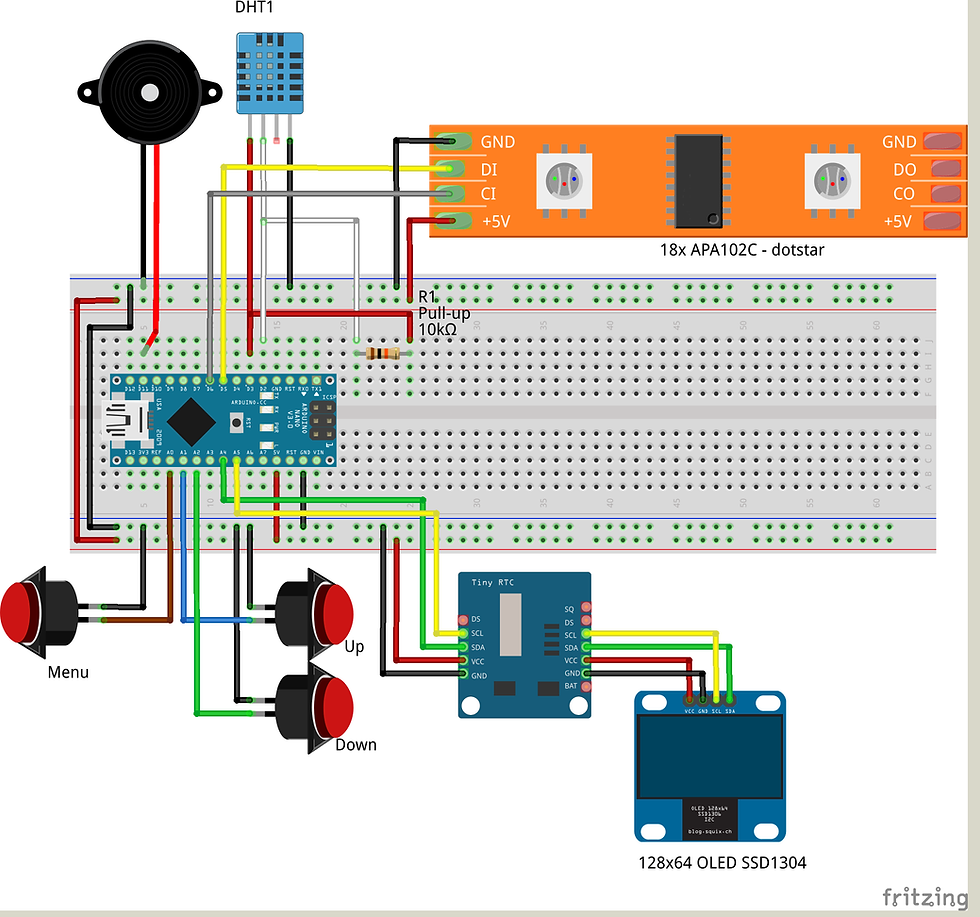

Componentes:
Arduino compatible Nano (Atmel ATmega328)
0,96'' OLED 128x64 with SSD1306 chip
APA102C led strip (18 leds)
Tiny RTC (DS1307 real time clock + 24C32 EEPROM)
DTH11
Buzzer
3 botones
Toda la info en: https://github.com/G4lile0/Arduino_3dprinted_Lunar_Phase_Clock
